Double floor kit Connect 14- L1 - 270 - rail

KD161400010

Width:
1470
Depth:
1575
Height:
285
NetWeight:
72.10

Alle dimensioner er i mm og alle vægte i kg.

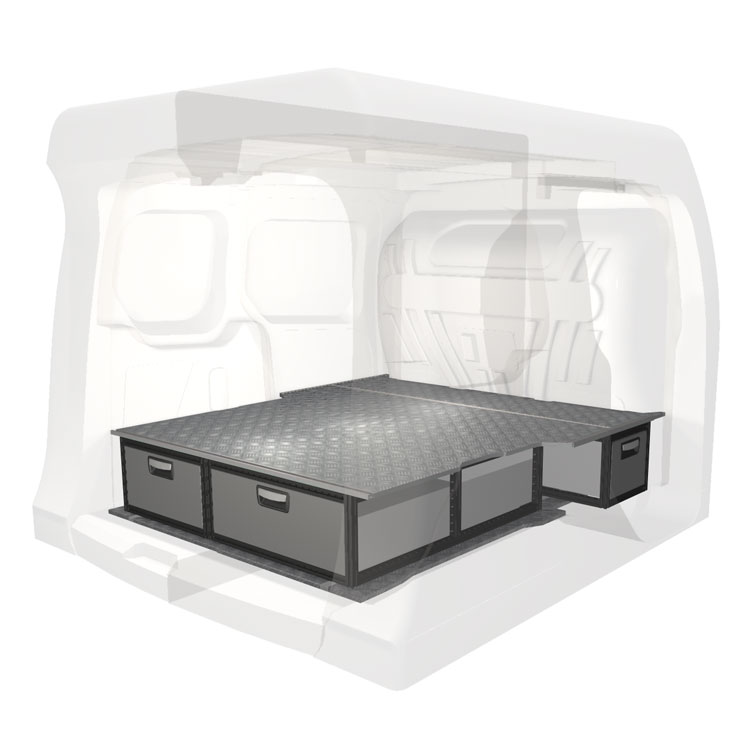

Double floor kit for a Ford Connect L1 2014-.

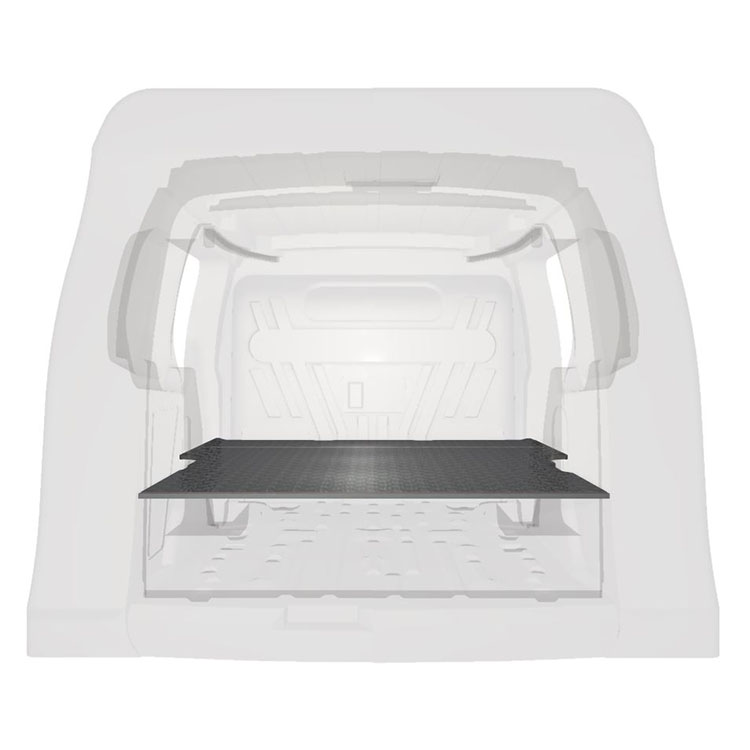

The kit is designed to be fitted on top of a Modul-Floor, utilizing the floor rails for a non-intrusive installation. The double floor is equipped with rails for easy installation of vehicle racking, and edging strips for a nice finish.

The kit comes complete with double floor, extra-long drawers, mounting brackets and the gluing products required for the installation.

NOTE! Glue gun is not included.

  • I alt: 8
  • Høj skilleplade, ekstra lang skuffe 324

  • Høj skilleplade, ekstra lang skuffe 486

  • Høj skilleplade, ekstra lang skuffe 648

  • Dækplade 972x270

  • Befæstigelsesøje til T-spor M8

  • Surringskrog til T-spor M8

  • Klemsikring/sikkerhedsstop

  • Modul-lås (med nøgle), lav

  • I alt: 8
  • 1
  • 2
  • I alt: 18
  • Sika Cleaner P

  • Primer Sponge

  • Glue nozzle - gun - floor

  • Glue Sikaflex 668 - 600 ml

  • Primer 507 - 100 ml

  • Dobbelt gulv Connect 14- L1 - 270 - skuffer

  • Ekstra lang skuffesektion 010 486x972x270

  • Ekstra lang skuffesektion 010 648x972x270

  • Skuffestativ 324x1296x270

  • Ekstra lang skuffe 324x1296x216

  • Gummimåtte, ekstra lang skuffe 486x972

  • Gummimåtte, ekstra lang skuffe 648x972

  • 1
  • 2
  • I alt: 18
